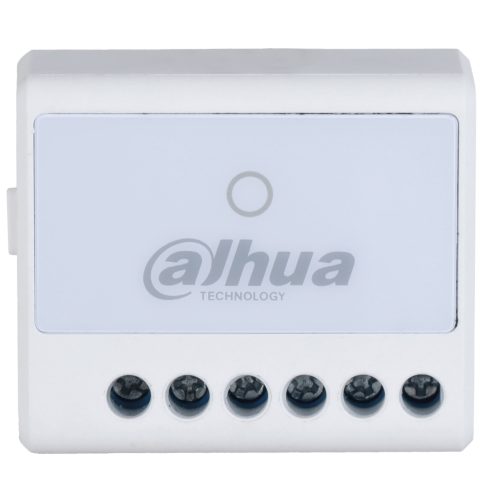

Dahua DHI-ARM320-W2 Wireless Input Expander

The Dahua DHI-ARM320-W2 Wireless Input Expander is a robust solution for connecting third-party sensors to Dahua’s wireless hubs. It supports multiple alarm types, including intrusion, fire, medical, gas, tamper, and emergency alarms, making it versatile for various security scenarios. The device communicates with the hub using two-way encrypted wireless transmission, enhancing security and reliability. Frequency hopping technology allows the expander to avoid interference from other wireless devices, maintaining smooth communication. Powered by three CR123A batteries, it offers a battery life of up to five years, and it also has an external power option. The built-in triaxial accelerometer detects tampering or unauthorized movement, triggering alarms if needed. Additionally, the device can send real-time updates via cloud connectivity, ensuring firmware stays current. The expander’s compact design allows for easy surface mounting or installation within third-party equipment. Dimension Technical Specifications Port Alarm Input 2 (1 for alarm and 1 for anti-tampering) Auxiliary Power Output 3.3 V, up to 10 mA Function Button 1 × power button Remote Update Cloud update Low Battery Detection Yes Tamper Yes Measuring Range (Temperature) –10 °C to 55 °C ( 14 °F to 131 °F) (indoor) Technical Sensor Triaxial accelerometer Test Mode Yes LED Indicator 1 × green alarm indicator Scenario Indoor Operating Current 45 uA (with 1 min heartbeat, normally open mode, charge not being provided for other devices and device moved alarm not enabled) Alarm Current 50 mA Wireless Carrier Frequency 433.1 MHz–434.6 MHz Communication Mechanism Two-way Communication Distance Up to 1300 m (4265.10 ft) in an open space Encryption Mode AES128 Frequency Hopping Yes General Power Supply 3 × CR123A battery Battery Model CR123A Battery Life 5 years (4 years if the external input type is pulse) Power Consumption Max. 150 mW (without providing charge for other devices) Operating Temperature –10 °C to 55 °C ( 14 °F to 131 °F) (indoor) Operating Humidity 10%–90% (RH) Product Dimensions 102 mm × 39 mm × 21.5 mm (4.02″ × 1.54″ × 0.85″) Net Weight 77 g (0.17 lb) Gross Weight 135 g (0.30 lb) Installation Surface mount, or mount inside a third-party device Certifications CE Anti-corrosion Level Basic Protection Packaging Dimensions 95 mm × 43 mm × 139 mm (3.74″ × 1.69″ × 5.47″) SKU: DHI-​ARM‌320-​W2 Categories: Dahua, Dahua Airshield Wireless Alarms Tags: dahua alarm, dahua input expander, DHI-ARM320-W2, Wireless Input Expander
