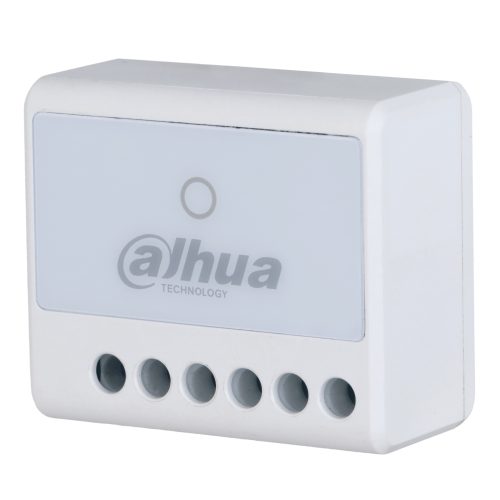

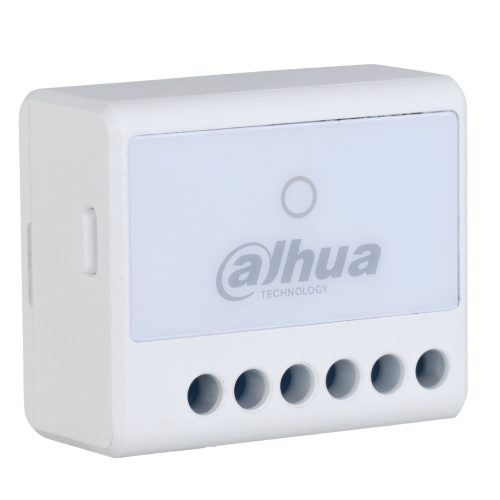

Dahua DHI-ARM7011-W2 Wireless Relay

The Dahua DHI-ARM7011-W2 Wireless Relay is a versatile device that allows remote control of low-voltage equipment, handling power outputs from 0 to 36 VDC. It uses advanced frequency hopping and two-way communication, ensuring stable connectivity even over long distances, up to 800 meters in open areas. The relay includes protections against overheating and overvoltage, enhancing its durability in diverse environments. One of its standout features is cloud update support, which allows the device to automatically restore functionality if the update fails. Additionally, it has jamming detection and communication encryption via AES128 for added security. The relay supports an external tamper input, making it useful for alarm systems, and is designed for indoor use with an operational temperature range from -10°C to 55°C. The device is compact, lightweight, and suitable for wall mounting, making it a convenient addition to any security or automation system. Dimension Application Technical Specifications Port Alarm Input 1 for tamper, NO/NC Relay Output 1, NO/NC (0–36 VDC, Max 5A) Function Indicator Light 1 for multiple statuses (pairing, communication) Button 1 Remote Update Cloud update Technical Test Mode Yes Wireless Carrier Frequency 433.1 MHz–434.6 MHz Communication Mechanism Two-way Communication Distance 800 m (2624.67 ft) in open areas Encryption Mode AES128 Frequency Hopping Yes General Power Supply 7–24 VDC Operating Temperature –10 °C to 55 °C ( 14 °F to 131 °F) (indoor) Operating Humidity 10%–90% (RH) Storage Temperature –10 °C to 55 °C ( 14 °F to 131 °F) Storage Humidity 10%–90% (RH) Product Dimensions 39 mm × 33 mm × 19 mm (1.54″ × 1.30″ × 0.75″) Packaging Dimensions 95 mm × 59.5 mm × 30.5 mm (3.74″ × 2.34″ × 1.20″) Net Weight 45 g (0.10 lb) Gross Weight 60 g (0.13 lb) Installation Wall mount Casing Material PC ABS Certifications CE, FCC SKU: DHI-​ARM7‌011-​W2 Categories: Dahua, Dahua Airshield Wireless Alarms Tags: dahua Wireless Relay, DHI-ARM7011-W2, Wireless Relay
